Concept

Converting expertise
into functionality for the customer.



Based on an industrialised and patented manufacturing process, the MODIKO® construction system results from the interconnection of various high-tech metal structural elements, which are subsequently assembled directly on site using smaller-scale lifting equipment.

This process considerably reduces construction time and increases the quality outcome of the end product by optimising production in the manufacturing plant with resulting efficiency in the assembly and finishing process.

We deliver quick construction solutions that are extremely versatile, allowing for total architectural creativity, offering great comfort and significant reduction of energy consumption costs (e.g. air conditioning).

approach image

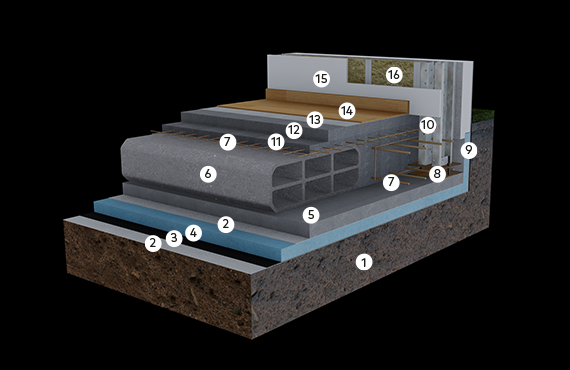

GROUND FLOOR

1)Terrain; 2) Geotextile fabric; 3) EPDM rubber sleeves; 4) XPS thermal insulation; 5) Concrete binding; 6) Lightweight slabs; 7) Steel framing; 8) Reinforced concrete foundation; 9) Studded screed panel; 10) MODIKO structure; 11) Concrete; 12) Cement screed; 13) Polystyrene sheet; 14) Floor finishing; 15) Plasterboard; 16) Glass wool.





approach image

FLOOR SLAB

1)Plasterboard; 2) Steel roof support structure; 3) Mineral wool; 4) MODIKO structure; 5) Marine plywood; 6) Acoustic board; 7) Fibreboard underlay; 8) Cement screed; 9) Polystyrene sheet; 10) Floor finishing; 11) Plasterboard; 12) Glass wool.





approach image

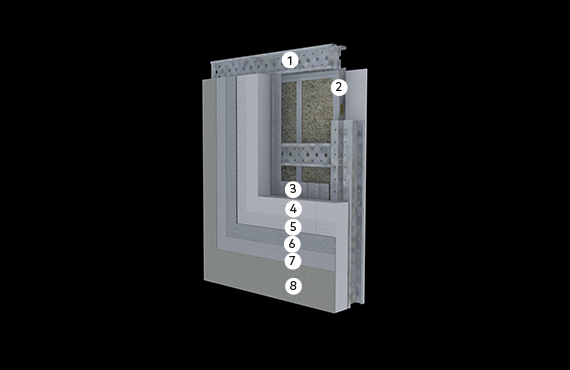

EXTERIOR WALL - EXTERIOR FACE

1)MODIKO structure; 2) Steel support structure; 3) Profiled Aluzinc sheets; 4) EPS 120 mm thermal insulation glued on sheet; 5) Fibreboard; 6) Plastering mortar; 7) Primer; 8) Colour matched finishing mortar.





approach image

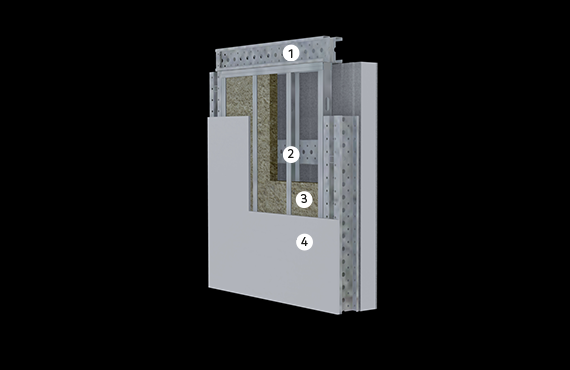

EXTERIOR WALL - INTERIOR FACE

1) MODIKO structure; 2) Steel support structure; 3) Glass wool; 4) Plasterboard.





approach image

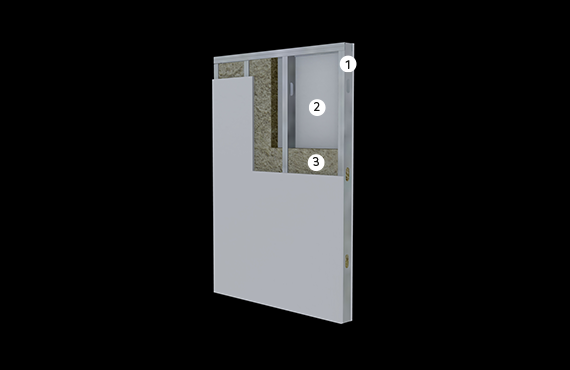

INTERNAL PARTITION WALL

1)Steel support structure; 2) Glass wool; 3) Plasterboard.





approach image

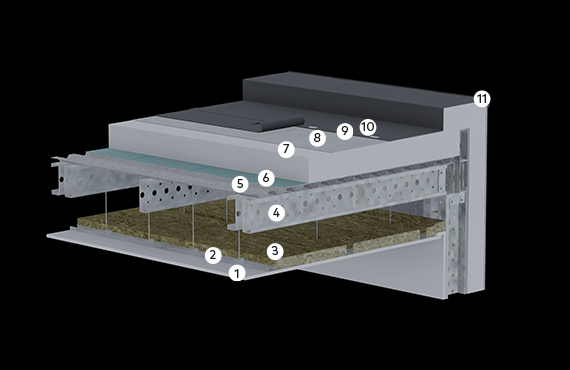

FLAT ROOF - PANEL

1)Plasterboard; 2) Steel roof support structure; 3) Mineral wool; 4) MODIKO structure; 5) Profiled Aluzinc sheet; 6) Vapour barrier; 7) EPS thermal insulation with pendant; 8) Geotextile fabric; 9) Mechanical fastening of the panel; 10) PVC membrane; 11) Laminated sheet profile.





approach image

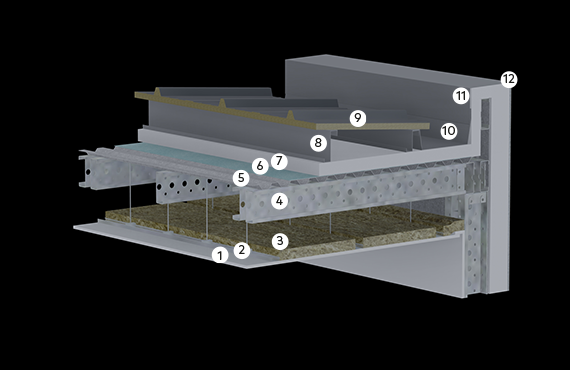

INCLINED ROOF - SANDWICH PANEL

1)Plasterboard; 2) Steel roof support structure; 3) Mineral wool; 4) MODIKO structure; 5) Profiled Aluzinc plate; 6) Vapour barrier; 7) XPS Thermal insulation; 8) Main panel structure; 9) Sandwich panel; 10) Gutter; 11) Cornice coating; 12) Cornice insulation.





approach image

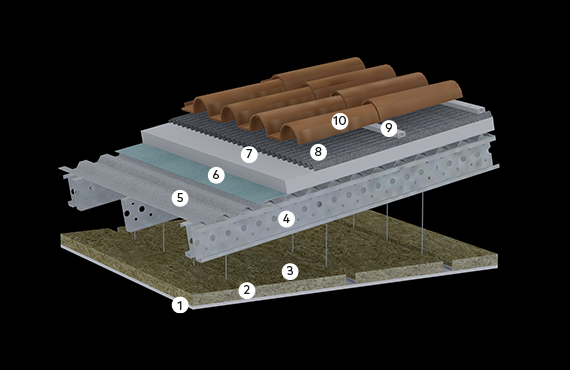

INCLINED ROOF - TILES

1)Plasterboard; 2) Steel roof support structure; 3) Mineral wool; 4) MODIKO structure; 5) Profiled Aluzinc sheet; 6) Vapour barrier; 7) XPS Thermal insulation; 8) Roofing underlay; 9) PVC lath; 10) Ceramic tile.





approach image

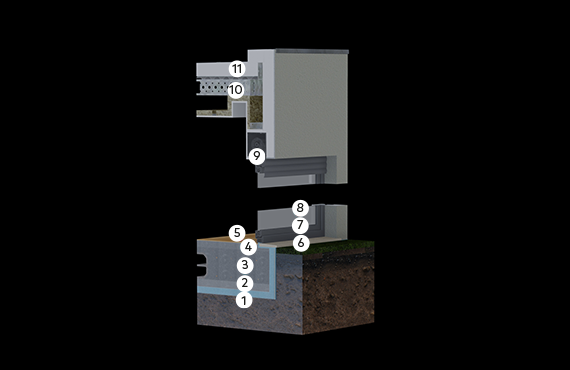

DOOR AND WINDOW FRAMES

1) XPS Thermal insulation; 2) Concrete binding; 3) Reinforced concrete; 4) Cement screed; 5) Floor finishing; 6) Door sills; 7) Thermally cut frames; 8) Double glazing; 9) Shutters; 10) MODIKO structure; 11) EPS thermal insulation.
